TL4 Series Four Point Transfer Press with Link Motion

Yangli Group Corporation Ltd. is one of the leading manufacturers and suppliers of tl4 series four point transfer press with link motion in China. Please feel free to wholesale high quality tl4 series four point transfer press with link motion from our factory. Good service and reasonable price are available.

TL4 series straight four point multi-link transfer press

·Multi-link drive:six links or eight links.

·Multi-link system is optimized with specific software.

·Big and main parts are optimized by FEM.

·Welded crown,column and bed are pre-tightened with tie rod bolt；press with high intensity and rigidity.

·Drive gear of high strength alloy steel;herringbone gear of high speed gear pair;tooth grinded hardened straight gear of low speed gear pair.

·Asynchronous drive with small slide lateral force.

·Eight-face rectangle guide of slide.

·Part revolution pneumatic friction clutch brake；optional imported wet type clutch brake.

·Hydraulic overload protector with high sensitivity.

·Automatic oil lubrication.

·Imported safety dual solenoid valve.

·Double control: elec.cam and mech.cam.

·Optional: air cushion,moving bolster, tonnage monitor,buffer.

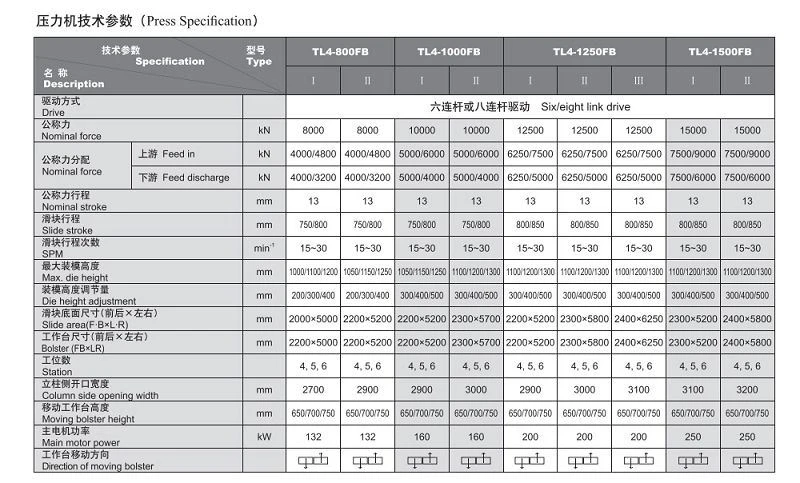

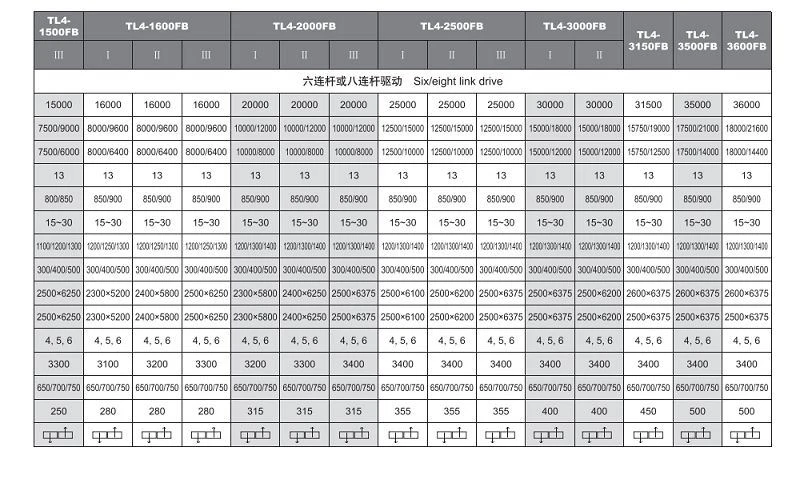

Technical Parameters
